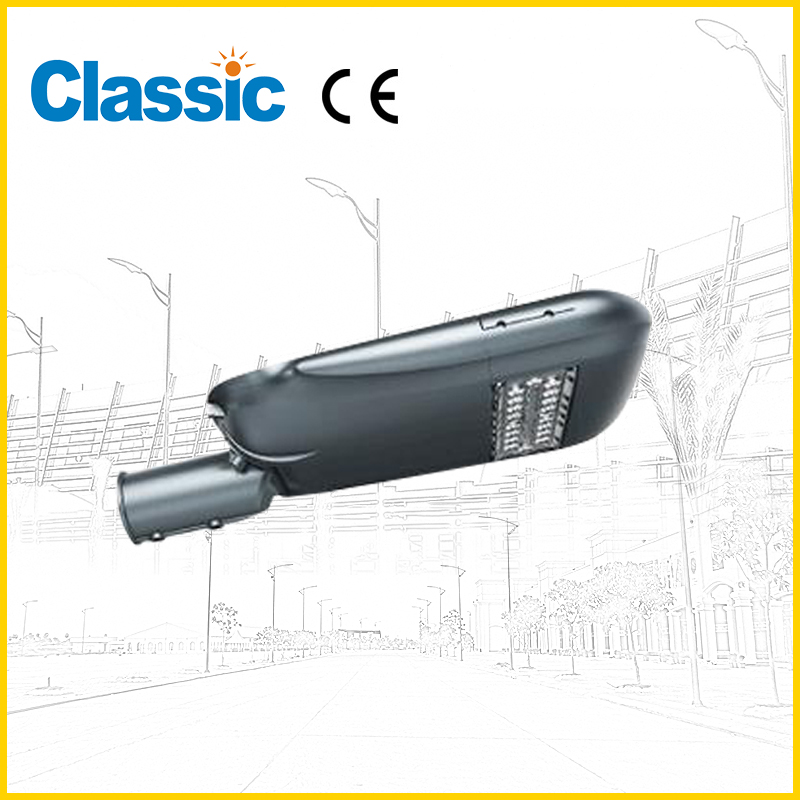

Led street light JD-1037A
Led street light JD-1037A

Led street light JD-1037A

1. 30W-60W LED street light.

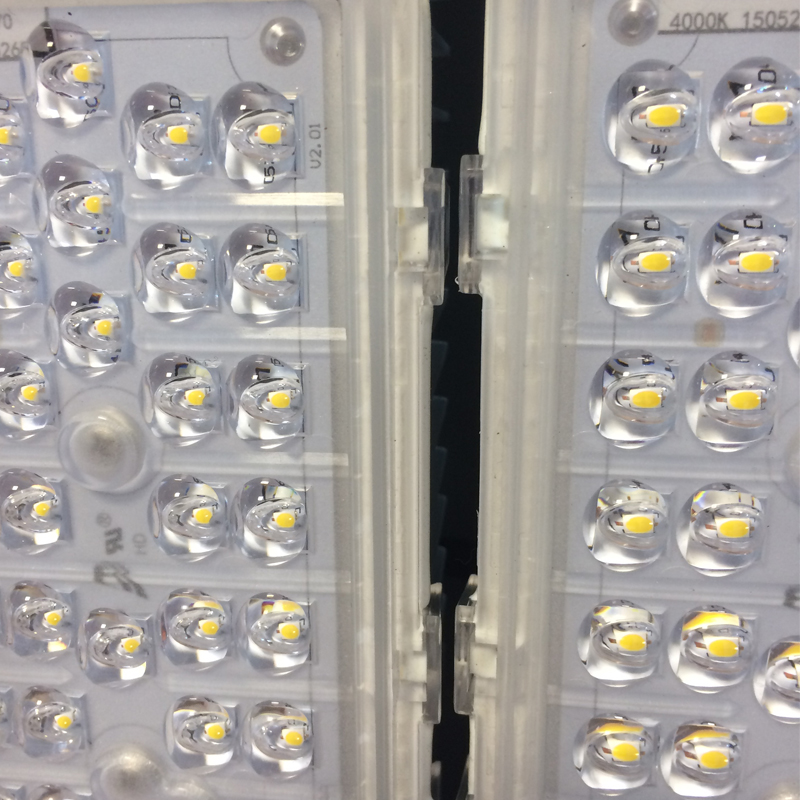

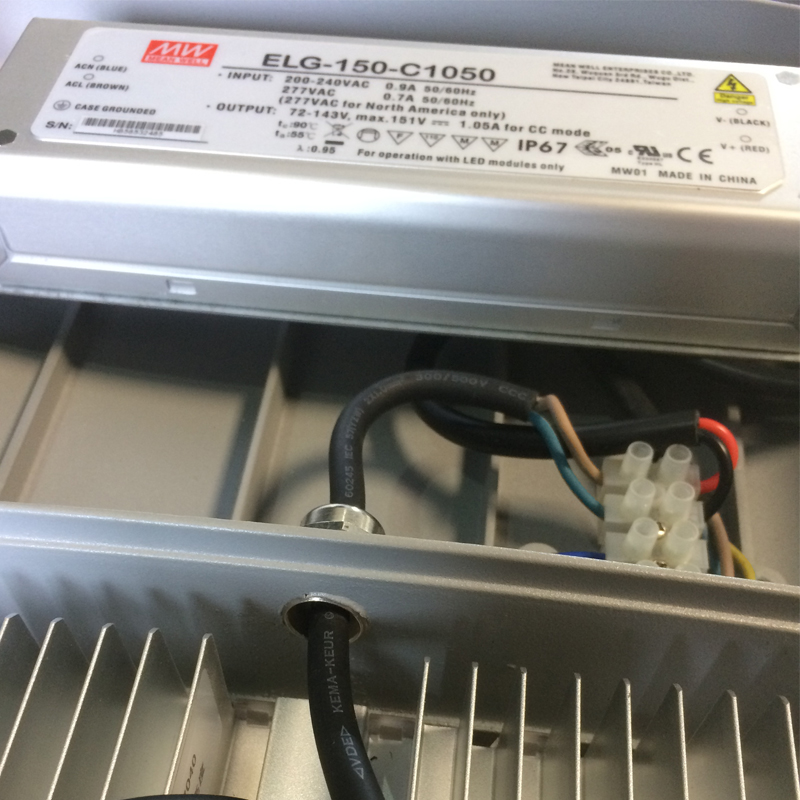

2. 1pc module ( Philip Luxeon 3030 led), Meanwell driver.
3. PMMA Modular optical lens design.
4. Can add and reduce modules from 1-5 pcs. Suitable 30-300W.
5. High intensity die-cast Aluminium body. IK08
6. Protection grade: Optical IP68, Driver department IP66
7. Auto Switch,Surge protector and photocell for choice.

Led street light JD-1037A Details

Product Code

JD-1037A

JD-1037B

JD-1037C

JD-1037D

JD-1037E

LED Quantity

One Module

Two Modules

Three Modules

Four Modules

Five Modules

Rate Power

60W

120W

180W

240W

300W

Electric Current (mA)

150mA

150mA

150mA

150mA

150mA

Color Temperature

6500/4000/3000K

6500/4000/3000K

6500/4000/3000K

6500/4000/3000K

6500/4000/3000K

Luminous Flux

110LM/W

110LM/W

110LM/W

110LM/W

110LM/W

Input Voltage

AC100-277V

AC100-277V

AC100-277V

AC100-277V

AC100-277V

Frequency Range

50/60Hz

50/60Hz

50/60Hz

50/60Hz

50/60Hz

Color Temperature

RA75

RA75

RA75

RA75

RA75

Temperature of working condition

-40℃  -  50℃

-40℃  -  50℃

-40℃  -  50℃

-40℃  -  50℃

-40℃  -  50℃

humidity of working condition

20%-90%

20%-90%

20%-90%

20%-90%

20%-90%

LED life time

70000h

70000h

70000h

70000h

70000h

Protestion Grade

IP66

IP66

IP66

IP66

IP66

PF

0.92

0.92

0.92

0.92

0.92

Installation Pipe Dia

 Φ60mm/ Φ42mm

 Φ60mm/ Φ42mm

 Φ60mm/ Φ42mm

 Φ60mm/ Φ42mm

 Φ60mm/ Φ42mm

Installation Height

3-6m

6-8m

7-9m

8-10m

10-12m

Net Weight

5.46 Kg

6.6 Kg

7.74 Kg

8.9 Kg

10.1 Kg

Gross Weight

6.5 Kg

7.6 Kg

8.8 Kg

10.0 Kg

10.3 Kg

Product Size

533*335*115mm

609*335*115mm

685*335*115mm

761*335*115mm

837*335*115mm

Packing Size

560*360*120mm

640*360*120mm

710*360*120mm

780*360*120mm

860*360*120mm

  1037d1037A
