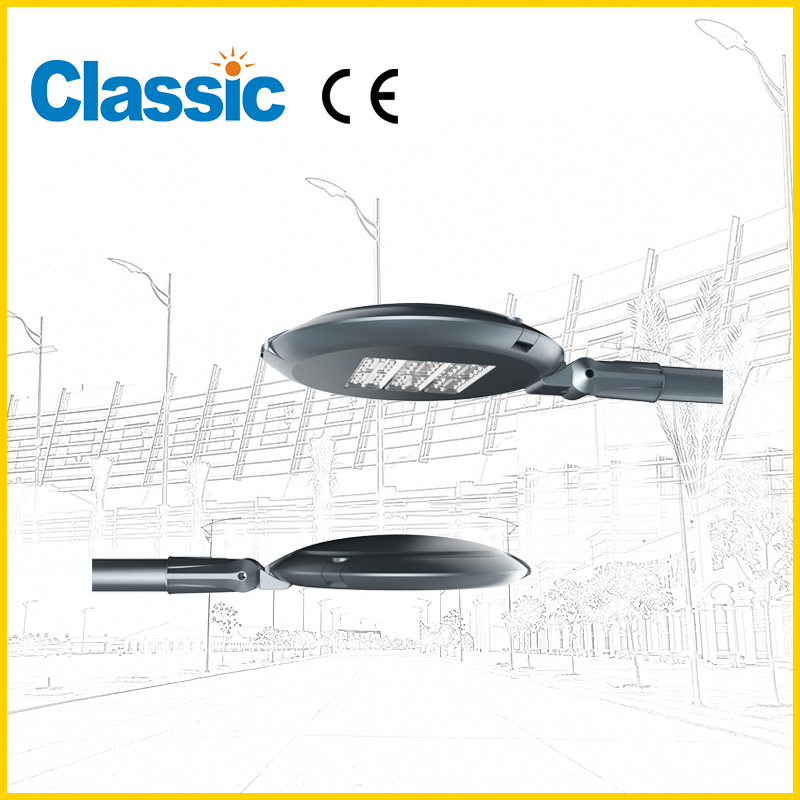

Led street light JD-1043B
Led street light JD-1043B

Led street light JD-1043B

1.90w,120w LED street light.Two wattge for choice.

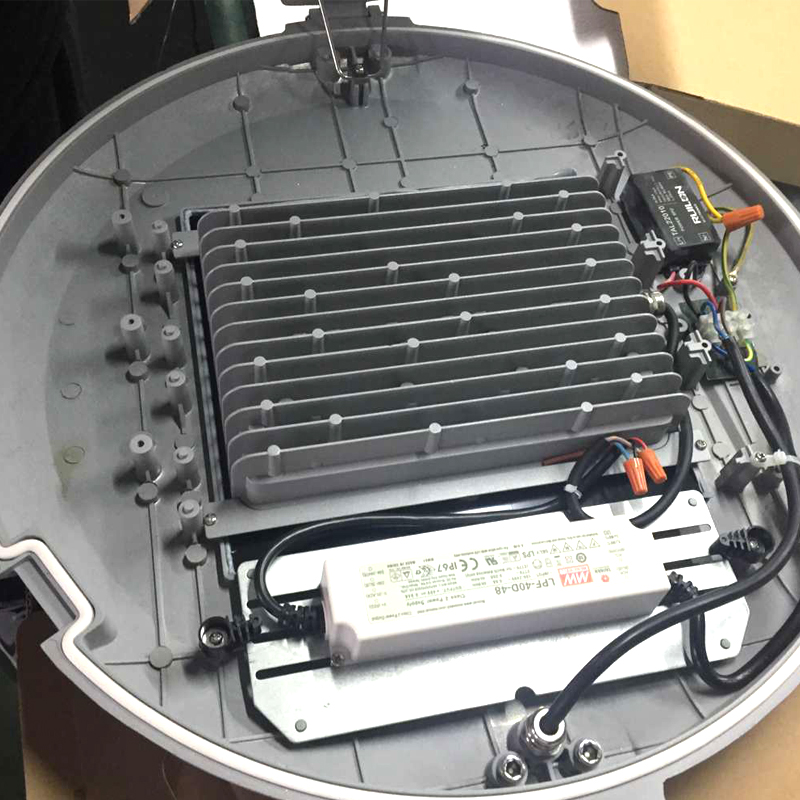

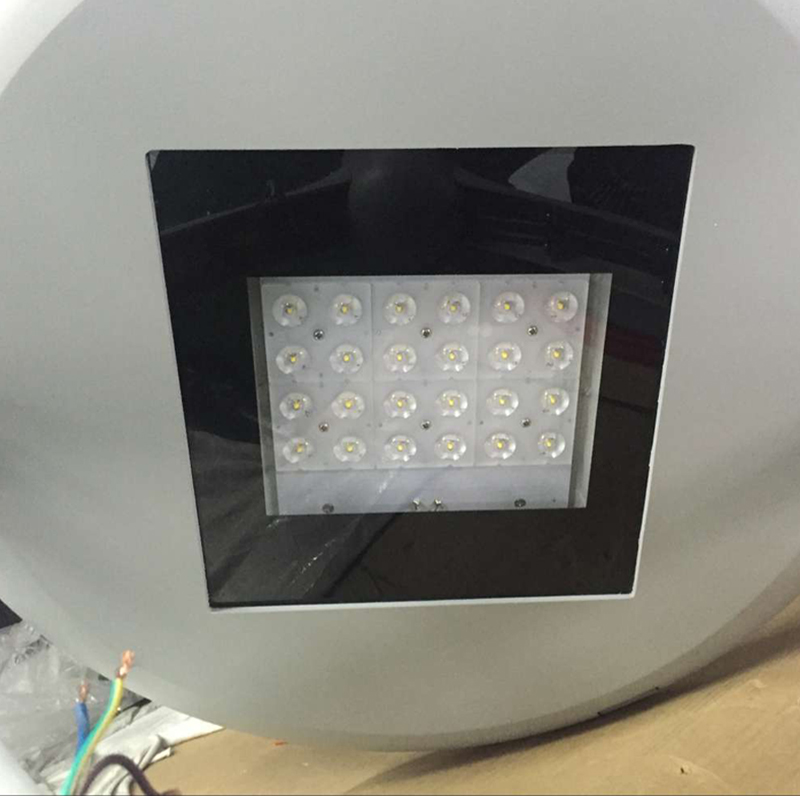

2.3pcs module ( Philip Luxeon 3030 led) and Inventronic driver.

3.High intensity die-cast Aluminium body.

4.High transparent temper glass reach to 93%.

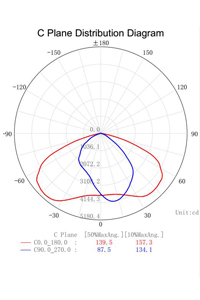

5.Modular optical lens design. 3 types photo metric for choice.

6.Tool-free opening and maintaining.

7.IK09.

8.Protection grade: IP66.

9.Auto Switch,Surge protector ,breather and photocell for choice.

Led street light JD-1043B Details

Product Code

JD-1043A 30W

JD-1043B 60W

JD-1043B

JD-1043C

Electric Current (mA)

430mA

467mA

150mA

150mA

LED Quantity

24pcs Cree XTE

48pcs Cree XTE

105pcs 3030

135pcs 3030

Rate Power

30W

60W

90W

120W

Color Temperature

6500/4000/3000K

6500/4000/3000K

6500/4000/3000K

6500/4000/3000K

Luminous Flux

3000lm/6500K

6000lm/6500K

10000lm/6500K

12000lm/6500K

Input Voltage

AC100-277V

AC100-277V

AC100-277V

AC100-277V

Frequency Range

50/60Hz

50/60Hz

50/60Hz

50/60Hz

Color Temperature

RA75

RA75

RA75

RA75

Temperature of working condition

-40℃  -  50℃

-40℃  -  50℃

-40℃  -  50℃

-40℃  -  50℃

humidity of working condition

20%-90%

20%-90%

20%-90%

20%-90%

LED life time

70000h

70000h

70000h

70000h

Protestion Grade

IP66

IP66

IP66

IP66

Installation Pipe Dia

Φ60mm

Φ60mm

Φ60mm

Φ60mm

Installation Height

6-8m

7-9m

8-10m

10-12m

Net Weight

7.35kgs

7.82kgs

8.2kgs

8.6kgs

Gross Weight

8.53kgs

9.02kgs

9.4kgs

9.8kgs

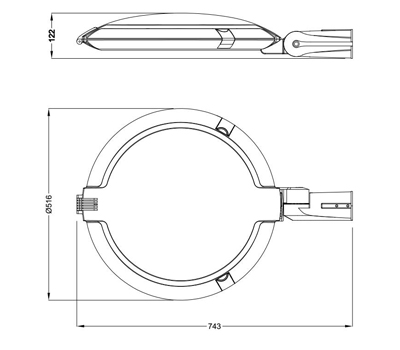

Product Size

743*516*122mm

743*516*122mm

743*516*122mm

743*516*122mm

Packing Size

655*590*165mM

655*590*165mM

655*590*165mM

655*590*165mM

1043B1 1043
