Led street light JD-1052
Led street light JD-1052

Led street light JD-1052

1.20W and 30W and 40W LED street light.

2.Philip led and PMMC lens.

3.High intensity die-cast Aluminium body.

4.Protection grade: IP66.

5.IK08.

Led street light JD-1052 Details
Product Code JD-1052A JD-1052B JD-1052AC
Driver Current (mA) 400mA 600mA 700mA
LED Current (mA) 80mA 120mA 140mA
LED Quantity PHILIP LUXEON 40pcs PHILIP LUXEON  40pcs PHILIP LUXEON  40pcs
Rate Power 20W 30W 40W
Color Temperature 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K
Luminous Flux 2600lm/6500K 4000lm/6500K 5200lm/6500K
Input Voltage AC100-277V AC100-277V AC100-277V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Color Temperature RA75 RA75 RA75
Temperature of working condition -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃
humidity of working condition 20%-90% 20%-90% 20%-90%
LED life time 70000h 70000h 70000h
Protestion Grade IP66 IP66 IP66
Installation Pipe Dia Φ48mm Φ48mm Φ48mm
Installation Height 4-6m 4-6m 4-6m
Net Weight 1.3kgs 1.3kgs 1.3kgs
Gross Weight 2kgs 2kgs 2kgs

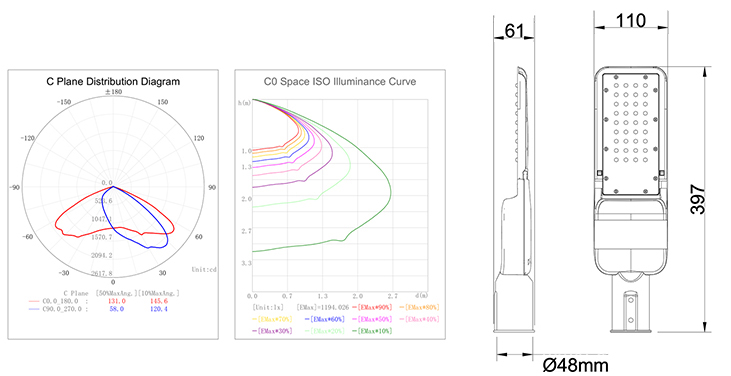

Product Size 397*110*61mm 397*110*61mm 397*110*61mm
Packing Size 420*125*80mm 420*125*80mm 420*125*80mm
