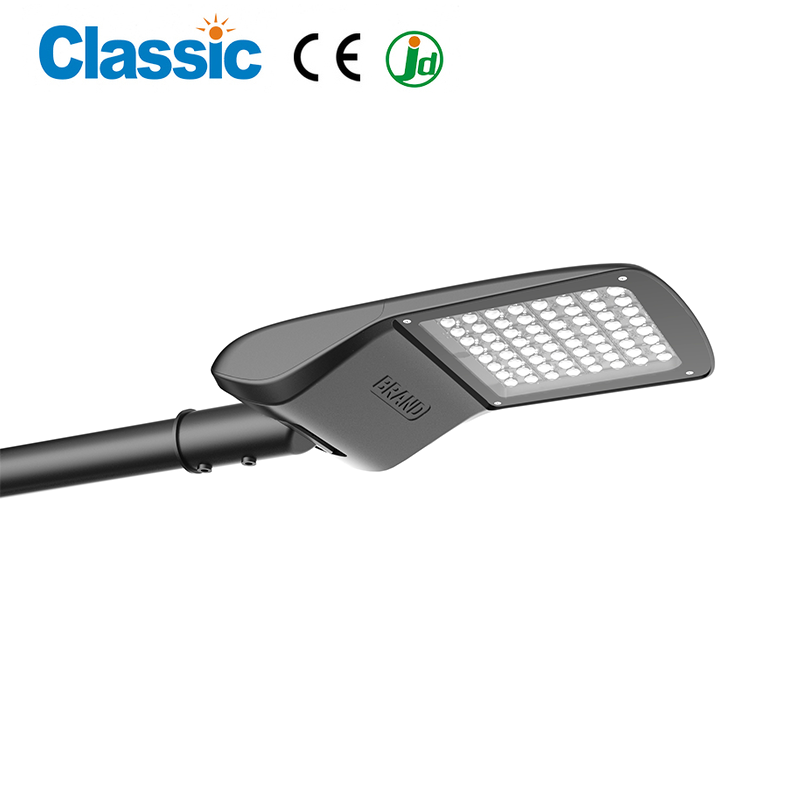

Led street light JD-1053 Suppliers

Led street light JD-1053
Led street light JD-1053

Led street light JD-1053

1.30W-100W LED street light.

2.CREE XTE led and Meanwell driver.

3.High intensity die-cast Aluminium body.

4.High transparent temper glass reach to 93%.

5.Modular optical lens design. Easy improve optical in future.

6.Tool-free opening and maintaining.

7.IK09.

8.Protection grade: IP66

9.Auto Switch,Surge protector and photocell for choice.

Led street light JD-1053 Details
Product Code JD-1053A JD-1053B JD-1053C JD-1053D JD-1053E JD-1053F
Driver Current (mA) 1.05A 1.05A 1.3A 1.4A 1.8A 1.9A
LED Current (mA) 525mA 525mA 433mA 450mA 467mA 475mA
LED Quantity 16pcs CREE XTE 24pcs CREE XTE 36pcs CREE XTE 40pcs CREE XTE 48pcs CREE XTE 64pcs CREE XTE
Rate Power 30W 40W 50W 60W 70W 100W
Color Temperature 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K
Luminous Flux 120LUM/W 120LUM/W 120LUM/W 120LUM/W 120LUM/W 120LUM/W
Input Voltage AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V
Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Color Temperature RA75 RA75 RA75 RA75 RA75 RA75
Temperature of working condition -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃
humidity of working condition 20%-90% 20%-90% 20%-90% 20%-90% 20%-90% 20%-90%
LED life time 70000h 70000h 70000h 70000h 70000h 70000h
Protestion Grade IP66 IP66 IP66 IP66 IP66 IP66
Installation Pipe Dia  Φ60mm/ Φ42mm  Φ60mm/ Φ42mm  Φ60mm/ Φ42mm  Φ60mm/ Φ42mm  Φ60mm/ Φ42mm  Φ60mm/ Φ42mm
Installation Height 3-4m 4-5m 5-6m 5-6m 7-8m 8-9m
Net Weight 6.0kg 6.0kg 6.1kg 8.0kg 8.0kg 8.2kg
Gross Weight 7.0kg 7.0kg 7.1kg 9.5kg 9.5kg 9.7kg
Product Size 550x230x115mm 550x230x115mm 550x230x115mm 617*263*119mm 617*263*119mm 617*263*119mm
Packing Size 600*270*160mm 600*270*160mm 600*270*160mm 660*295*165mm 660*295*165mm 660*295*165mm
