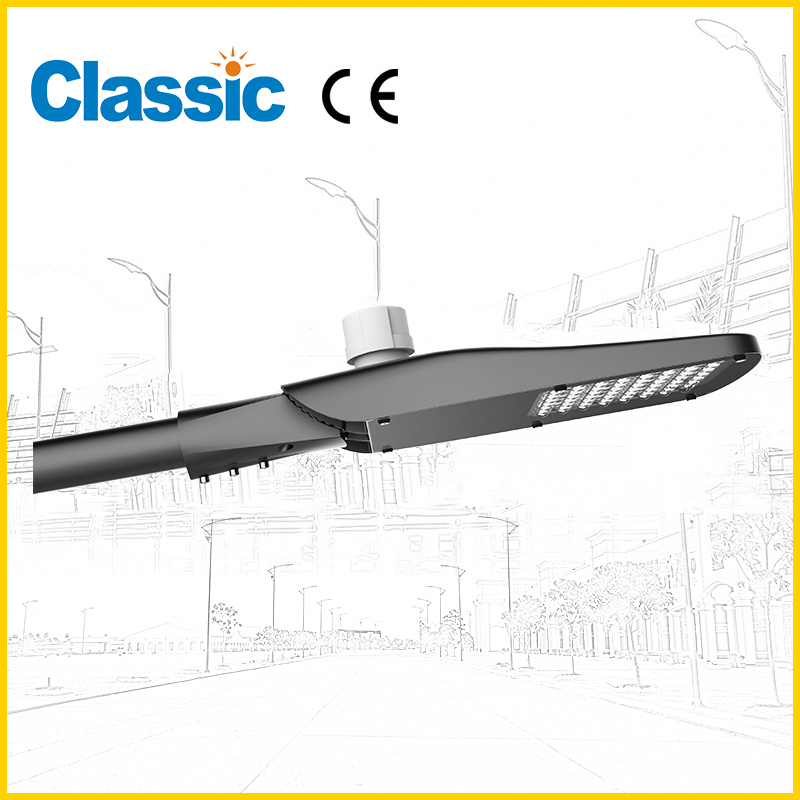

Home / Products / Led street light / Led Street Light JD-1058
• High strength aluminum die casting material,surface anit-ageing electrostatic spray processing,super resistance to corrosion.
• Glass cover, high strength impact resistance.
• Input Voltage: AC110-277V, 50/60HZ, IP65, Ik09
• Bracket: 60mm
• Insulation class II
• Spare parts for choice
10kv/20kv SPD
0-10v dimming driver Nema socket
Product Code | JD-1058A | JD1058B | JD-1058C | JD-1058D | JD-1058E | JD-1058F |
Electric Current(mA) | 1050mA | 1050mA | 1300mA | 1800mA | 1400mA | 1900mA |
LED Quantity | 16pcs CREEXTE | 24pcs CREEXTE | 36pcs CREEXTE | 40pcs CREEXTE | 48pcs CREEXTE | 64pcs CREEXTE |
Rated Power | 30W | 40W | 50W | 60W | 70W | 100W |
Color Temperature | 6500/4000K/3000K | 6500/4000K/3000K | 6500/4000K/3000K | >500/4000K/3000K | 6500/4000K/3000K | 6500/4000K/3000K |
Luminous Flux | 130Lum/W | 130Lum/W | 130Lum/W | 130Lum/W | 130Lum/W | 130Lum/W |
Input Voltage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
Frequency Range | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
CRI | RA75 | RA75 | RA75 | RA75 | RA75 | RA75 |
Temperature of working condition | -40°C — 45°C | -40°C — 45°C | -40°C —45°C | -40°C — 45°C | -40°C —45°C | -40°C — 45°C |
Humindity of working condition | 20%-90% | 20%-90% | 20%-90% | 20%-90% | 20%-90% | 20%-90% |
LED lifetime | 70000h | 70000h | 70000h | 70000h | 70000h | 70000h |
Protection Grade | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
Installation Pipe Dia | Φ76mm | Φ76mm | Φ76mm | Φ76mm | Φ76mm | Φ76mm |
Installation Height | 3-5m | 3-5m | 3-5m | 3-5m | 3-5m | 3-5m |
Net Weight | 4Kq | 4 Kg | 4 Kg | 5Kq | 5 Kg | 5Kq |
Gross Weight | 4.5 Kg | 4.5Kg | 4.5 Kg | 5.5 Kg | 5.5Kg | 5.5 Kg |

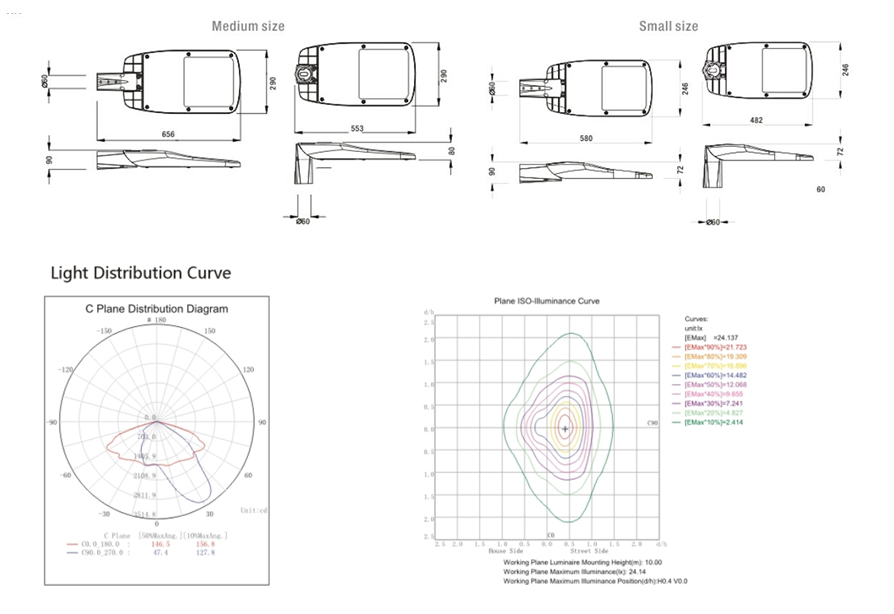

Product Size | 580*246*90mm | 580*246*90mm | 580*246*90mm | 656*290*90mm | 656*290*90mm | 656*29(T90mm |
Packing Size | 600*270” 20mm | 600*270*120mm | 600*270*120mm | 680*310*120mm | 680*310*120mm | 680*310*120mm |
