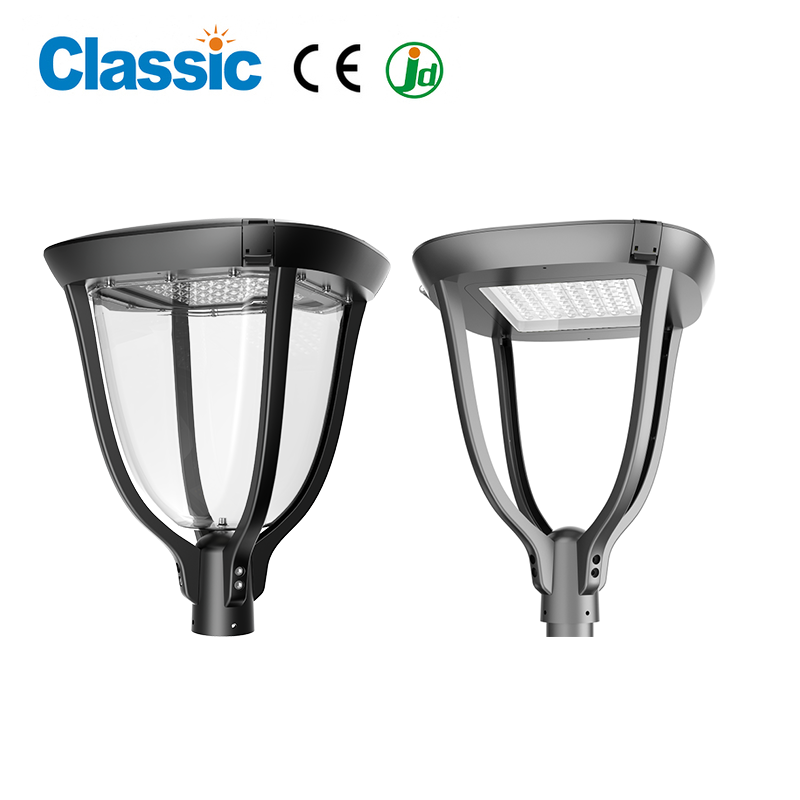

1.30W,60W，100W LED street light. Three wattge for choice.
2.CREE XTE led OR philip 3030 luminled and Inventronic driver.
3.High intensity die-cast Aluminium body.
4.High transparent temper glass reach to 93%.

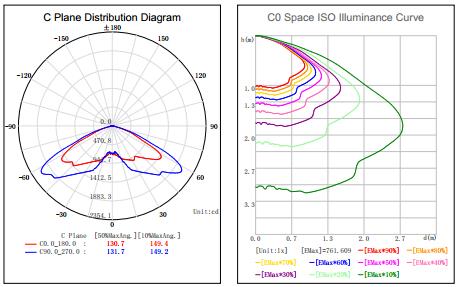

5.Modular optical lens design. 3 types photo metric for choice.
6.Tool-free opening and maintaining.
7.IK09.
8.Protection grade: IP66
9.Auto Switch,Surge protector,breather and photocell for choice.
| Product Code | JD-1064A 30W | JD-1064B 60W | JD-1064C 100W |
| Electric Current (mA) | 430mA | 467mA | 150mA |
| LED Quantity | 24pcs Cree XTE | 48pcs Cree XTE | 64pcs Cree XTE |
| Rate Power | 30W | 60W | 100W |
| Color Temperature | 6500/4000/3000K | 6500/4000/3000K | 6500/4000/3000K |
| Luminous Flux | 3000lm/6500K | 6000lm/6500K | 10000lm/6500K |
| Input Voltage | AC100-277V | AC100-277V | AC100-277V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Color Temperature | RA75 | RA75 | RA75 |
| Temperature of working condition | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ |
| humidity of working condition | 20%-90% | 20%-90% | 20%-90% |
| LED life time | 70000h | 70000h | 70000h |
| Protestion Grade | IP66 | IP66 | IP66 |
| Installation Pipe Dia | Φ76mm | Φ76mm | Φ76mm |
| Installation Height | 6-8m | 7-9m | 8-10m |
| Net Weight | 7.9kgs | 8.46kgs | 8.2kgs |
| Gross Weight | 9.1kgs | 9.66kgs | 9.4kgs |

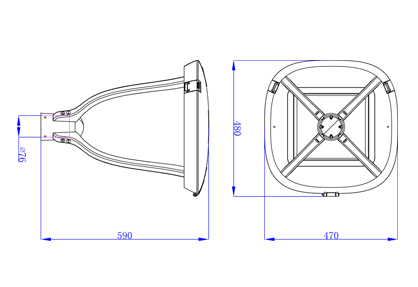

| Product Size | 480*470*590mm | 480*470*590mm | 480*470*590mm |
| Packing Size | 630*560*160mm | 630*560*160mm | 630*560*160mm |
