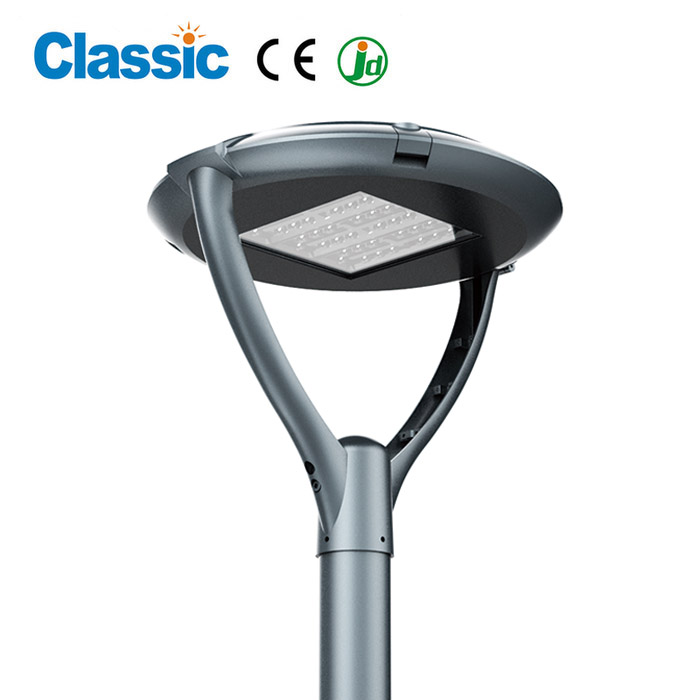

产品型号 | Product Code | JD-1044A-30W | JD-1044A-60W | JD-1044A-100W |
led 电流(mA) | LED Current(mA) | 50mA 5050/67mA 3030 | 54mA 5050/67mA 3030 | 63mA 5050/84mA 3030 |
LED数量 | LED Quantity | 24pcs 5050/72pcs 3030 | 48pcs 5050/144pcs 3030 | 64pcs 5050/192pcs 3030 |
额定功率 | Rate Power | 30W | 60W | 100W |
色温 | Color Temperature | 6500/4000/3000K | ||
灯具光效 | Luminary EER | 140lm/w(5050) 130lm/w(3030) | ||
输入电压 | InputVoltage | AC100-277V | ||
频率 | Frequency Range | 50/60Hz | ||
显色指数 | CRI | Ra75 | ||
工作环境温度 | Temperature of working condition | -40℃-50℃ | ||
工作环境湿度 | humidity of working condition | 20%-90% | ||
LED寿命 | LED life time | 100000h(L70) | ||
防护等级 | Protestion Grade | IP66 | ||
安装管径 | Installation Pipe Dia | φ76mm/φ60mm | ||
安装高度 | Installation Height | 4-6m | 6-8m | 8-10m |
净重 | Net Weight | 7.9kgs | 8.46kgs | 8.9kgs |
毛重 | Gross Weight | 9.1kgs | 9.6kgs | 10kgs |
产品尺寸 | Product Size | 550*516*500mm | ||
包装尺寸 | Packing Size | 655*590*165mm |
We are a professional outdoor lamp manufacturer. Our goal is to provide custom solutions to customers and market. Although the markets, applications, and customers are different, Golden Classic Lighting has a unique idea to guide customers to success. For any consultation and feedback, we will reply patiently and carefully. For any inquiry, we will give reasonable quotation as soon as possible. For any new product, we will communicate with customers and take their ideas into consideration to make the best product. For any order, we will finish the production on time. We will spend time and energy to solve every problem, no matter how common it is. We will always accommodate to you, and you can find that we can speak your language and know your technology. This is why we have successfully cooperated with so many customers from different countries. Golden Classic Lighting base on the enterprise tenet “high standard, high precision, fewer defects”, pay attention to the quality, to build a competitive enterprise. We adhere to the work style “pragmatic and integrity, never give up, team work, keep improving”, sincerely welcome new and old customers.
Company have CE, Rohs certificates. Strong QC team works hard in products lines according to SO9001-2000 quality control system.
