| Product Code | JD-1072A | JD-1072B | JD-1072C | JD-1072D | JD-1072E |
| LED Current (mA) | 100mA 3030/75mA 5050 | 88mA 3030/67mA 5050 | 72mA 3030/58mA 5050 | 80mA 3030/60mA 5050 | 78mA 3030/63mA 5050 |
| LED Quantity | 48pcs 3030/16pcs 5050 | 72pcs 3030/24pcs 5050 | 108pcs 3030/36pcs 5050 | 120pcs 3030/40pcs 5050 | 144pcs 3030/48pcs 5050 |
| Rate Power | 30W | 40W | 50W | 60W | 70W |
| Color Temperature | 6500/4000/3000K | 6500/4000/3000K | 6500/4000/3000K | 6500/4000/3000K | 6500/4000/3000K |
| Luminous Flux | 130LM/W 3030 140LM/W 5050 | 130LM/W 3030 140LM/W 5050 | 130LM/W 3030 140LM/W 5050 | 130LM/W 3030 140LM/W 5050 | 150LUM/W |
| Input Voltage | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Color Temperature | RA75 | RA75 | RA75 | RA75 | RA75 |
| Temperature of working condition | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ |
| humidity of working condition | 20%-90% | 20%-90% | 20%-90% | 20%-90% | 20%-90% |
| LED life time | 70000h | 70000h | 70000h | 70000h | 70000h |
| Protestion Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Installation Pipe Dia | Φ60mm | Φ60mm | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 3-4m | 4-5m | 5-6m | 6-7m | 7-8m |
| Net Weight | 1.52kg | 1.62kg | 1.92kg | 2.12kg | 2.62Kg |
| Gross Weight | 2.52kg | 2.62kg | 2.92kg | 3.12kg | 3.62kg |

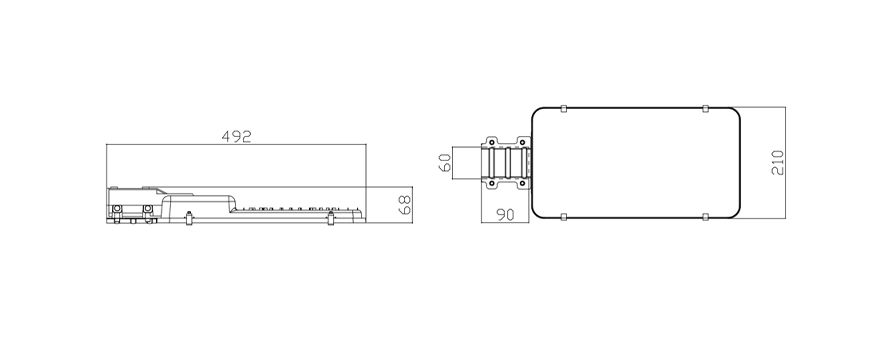

| Product Size | 492x210x68mm | 492x210x68mm | 492x210x68mm | 492x210x68mm | 492x210x68mm |
| Packing Size | 530x265x135mm | 530x265x135mm | 530x265x135mm | 530x265x135mm | 530x265x135mm |
If you are interested in our products or have any questions, please consult us.
