Led street light JD-1065 Suppliers

Led street light JD-1065
Led street light JD-1065

Led street light JD-1065

Led street light JD-1065 Details
Product Code JD-1065A JD-1065B JD-1065C JD-1065D JD-1065E JD-1065F JD-1065G JD-1065H JD-1065I JD-1065J JD-1065K
LED Current (mA) 50mA 44mA 39mA 44mA 42mA 42mA 50mA 50mA 53mA 53mA 57mA
LED Quantity 24pcs 5050 36pcs 5050 54pcs 5050 54pcs 5050 72pcs 5050 96pcs 5050 96pcs 5050 120pcs 5050 150pcs 5050 180pcs 5050 204pcs 5050
Rate Power 30W 40W 50W 60W 70W 100W 120W 150W 200W 240W 300W
Color Temperature 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K
Luminous Flux 150LUM/W 150LUM/W 150LUM/W 150LUM/W 150LUM/W 150LUM/W 150LUM/W 150LUM/W 150LUM/W 150LUM/W 150LUM/W
Input Voltage AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V
Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Color Temperature RA75 RA75 RA75 RA75 RA75 RA75 RA75 RA75 RA75 RA75 RA75
Temperature of working condition -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃
humidity of working condition 20%-90% 20%-90% 20%-90% 20%-90% 20%-90% 20%-90% 20%-90% 20%-90% 20%-90% 20%-90% 20%-90%
LED life time 70000h 70000h 70000h 70000h 70000h 70000h 70000h 70000h 70000h 70000h 70000h
Protestion Grade IP66 IP66 IP66 IP66 IP66 IP66 IP66 IP66 IP66 IP66 IP66
Installation Pipe Dia Φ48/Φ60mm Φ48/Φ60mm Φ48/Φ60mm Φ48/Φ60mm Φ48/Φ60mm Φ48/Φ60mm Φ48/Φ60mm  Φ60/Φ76mm  Φ60/Φ76mm  Φ60/Φ76mm  Φ60/Φ76mm
Installation Height 3-4m 4-5m 5-6m 5-6m 7-8m 8-9m 9-10m 9-10m 10-12m 10-12m 12-14m
Net Weight 4.3kg 4.4kg 4.5kg 4.6kg 7Kg 7.2kg 7.4kg 13KG 13.5KG 13.5KG 14KG
Gross Weight 5.3kg 5.4kg 5.5kg 5.6kg 8kg 8.2kg 8.4kg 14KG 14.5KG 14.5KG 15KG

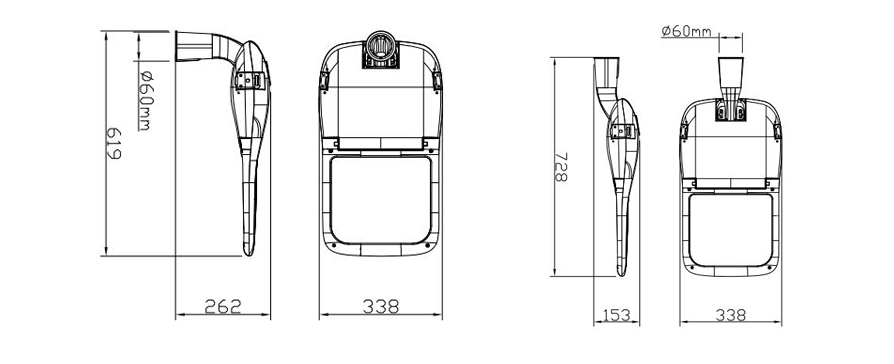

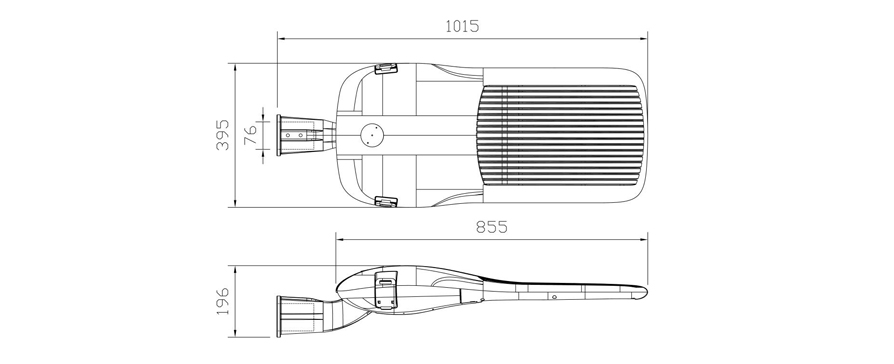

Product Size 598x255x140mm 598x255x140mm 598x255x140mm 598x255x140mm 728*338*153mm 728*338*153mm 728*338*153mm 1015*395*196 1015*395*196 1015*395*196 1015*395*196
Packing Size 655*295*190mm 655*295*190mm 655*295*190mm 655*295*190mm 780*385*188mm 780*385*188mm 780*385*188mm 1078*437*238 1078*437*238 1078*437*238 1078*437*238
